ComCap Map COMM1

Top  Previous  Next

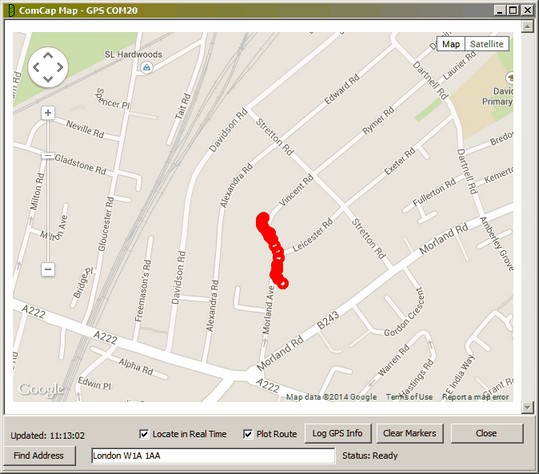

If the channel is processing GPS data, right clicking in the main windows allows the ComCap Map window to be displayed.  The map window is free floating and may remain open while ComCap is hidden.  However, only a single channel may be mapped at a time:



cm5-1main-map



Note this Windows uses Google maps, and requires internet access to download the latest maps, although earlier displayed maps may remain cached if offline.  A red marker indicates a new GPS location.



Locate in Real Time

Tick box that determines whether new GPS location marker should be plotted on the map.



Plot Route

Tick box that determines whether old markers should remain on the map when a new one is plotted, thus creating a route.



Log GPS Info

Clicking this option will add general GPS information to the info log, depending on the capabilities of the GPS source.



For a NEMA data stream, detailed satellite information is listed:



Satellites in View = 12

Satellites Used = 4

Speed (Knots) = 1.6

True Heading = 85.91

Error Radius = 3.4

Geoidal Separation = 47m

PDOP = 4.5

HDOP = 3.4

Satellite 25, Azimuth 267, Elevation 69, S/N 24, Fix

Satellite 12, Azimuth 61, Elevation 68, S/N 18, Fix

Satellite 14, Azimuth 263, Elevation 49, S/N 27, Fix

Satellite 2, Azimuth 97, Elevation 21, S/N 4

Satellite 6, Azimuth 60, Elevation 20, S/N 5

Satellite 29, Azimuth 193, Elevation 23, S/N 4

Satellite 24, Azimuth 129, Elevation 36, S/N 0

Satellite 31, Azimuth 301, Elevation 15, S/N 0

Satellite 4, Azimuth 26, Elevation 7, S/N 0



For the Concox TR02 device GSM information is added but less satellite information:



Sensor ID: 358899053538305

GSM Signal Level: 4

Voltage Level: 5

Location Area Code: 0195

Mobile Network Code: 0

Mobile Cell Id: 0

Satellites in View = 13

Satellites Used = 13

True Heading = 88

Magnetic Heading = 88

Satellite 1, Azimuth 0, Elevation 0, S/N 27

Satellite 2, Azimuth 0, Elevation 0, S/N 36





Clear Markers

Clicking the button clears all markers on the map.



Find Address

Allows the map to be relocated to the result of an address search.  Untick Locate in Real Time first, or the map will revert to plot a new location.
